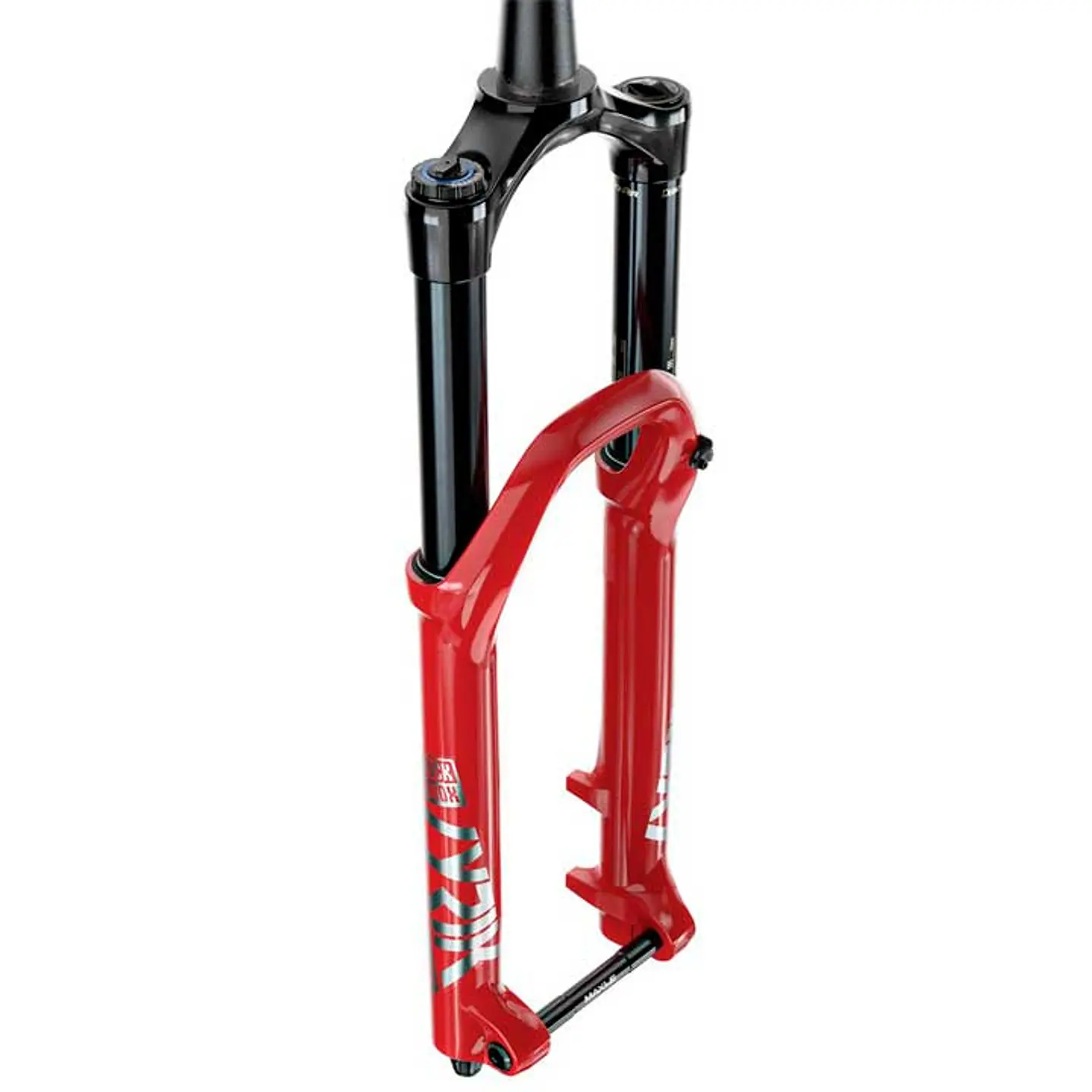

Model designator (SF) Ultimate
Wheel size 29"
Travel (mm) 160mm
Damper Type Charger 2.1 RC2
Fork offset 42mm (29")
00.4020.567.030
00.4020.567.030
- Maxle included Maxle Stealth
- Color (FS) BoXXer Red
- E-MTB Decal No
- Steerer 1.5" Tapered
- Axle 15x110mm BOOST™
- Axle to Crown (mm) 571
- Brake type (FD) Disc
- Crown Material Forged, hollow aluminum
- Upper crown type n/a
- Lower leg material Magnesium
- Upper Tube Finish Fast Black
- Upper tube type 35mm tapered wall aluminum
- Damper adjust Crown
- Damping adjustments Extl begin stroke rebnd, low speed comp, high speed comp
- Volume reducer 2/5 Tokens
- Spring DebonAir
- Spring rate n/a
- Max Tire Diameter (mm) 770
- Max Tire Width (mm) 81
- Maximum Rotor Size 220mm
- Minimum Rotor Size 180mm
- Fender Compatibility n/a
- Crown OD (mm) 59
- Part Weight (g) 2021
